I’m still hoping to get another solder PCB and 1/2 plate at some point. Still trolling mechmarket for a discounted M65-a… maybe even one with imperfections that I could get powdercoated
1 Like
Ordered half plates and soldered PCB
I’ll tell you if everything works nice.
1 Like
I love power coat finish, and with specialty coats like wrinkle this easily hide scratches you may have.
This is a good idea!
1 Like
I guess this is M65-A exclusive and won’t work on the later M65-B model?
Would be really nice to have the 1.5, 1.5, 7, 1.5, 1.5 bottom row on it
1 Like
Looks like the M65-B PCB is a different beast so no compatibility unfortunately.

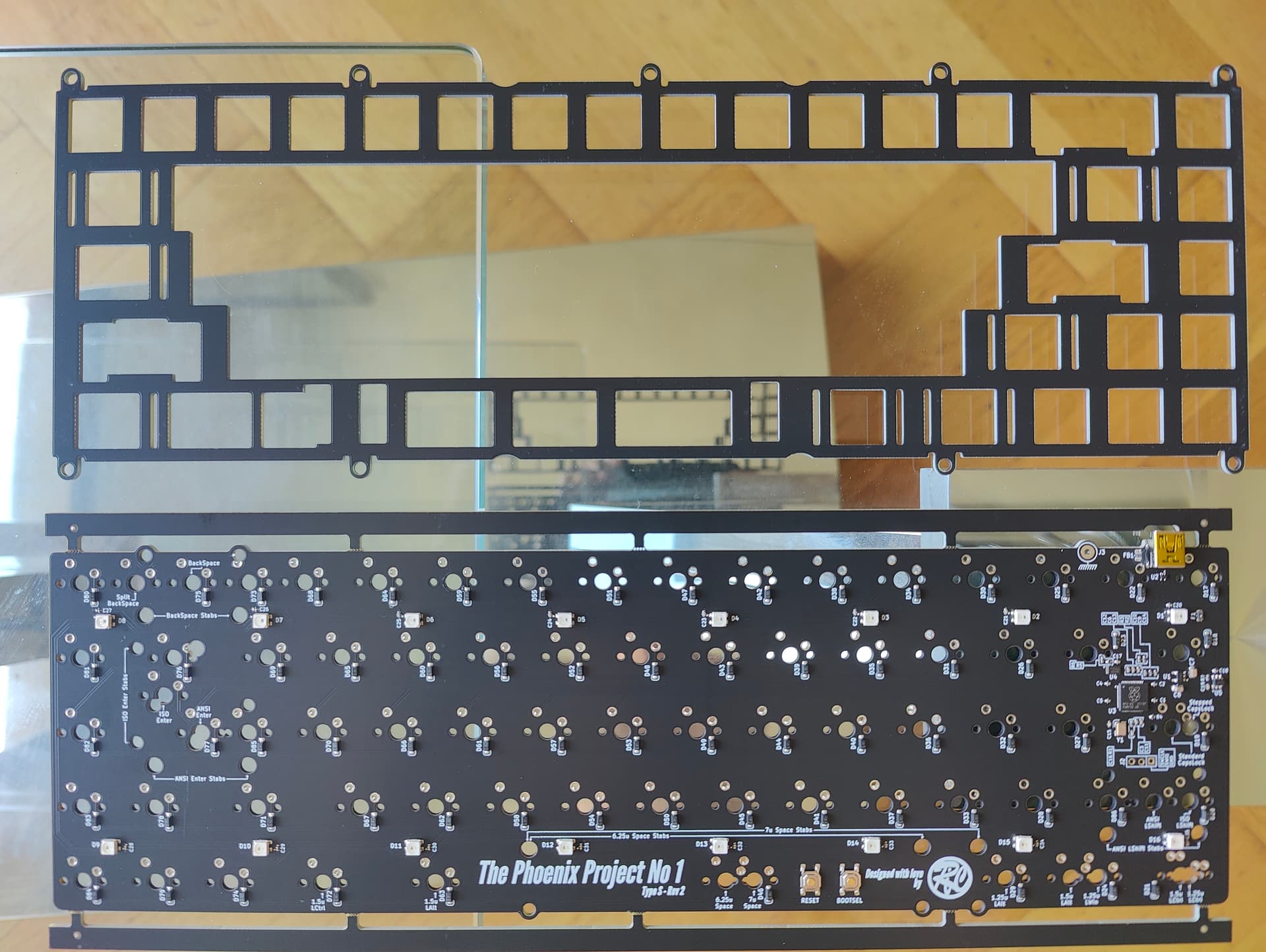

Just received the assembled Phoenix Project No 1 Type S PCBs and the FR4 half plate, 5 of each.
Need to test if everything works as intended now.
2 Likes
A bit of news about the Type S PCBs.
They are all working great, but I had to make some small surgery on them to fix a weird issue.
This was very strange as previously ordered Type H were running without any issue.
When I ordered the Type S, the fuse I had inially selected in my design was out of stock, so I picked another reference that I supposed would fit nicely … and it happened that it was not the case: I had totally unstable LED backlight.
It also killed a few LEDs in the process
So I did replaced fuses with a beefy one and also replaced the fews LEDs that took a hit due to the bad fuses used. It is very easy to do with a hot air soldering station
Now all 5 PCBs are running as they should and pases the RGB LED tests !
And for people wanting to order the PCBs themselves, as long as you stick with the component references that I listed in the BOM, they should work fine with and with the correct fuse reference.
So for people interested, I now have in my possession:
- 5 Type S (solder) PCB.
- 3 FR4 full plates.
- 5 FR4 half plates.
See you !
2 Likes
Awesome! Great to hear despite the slight hiccup!
1 Like
Forever grateful to for this board being revived. Was my first “grail” level board and the resurrection with upgrades is better than ever.
2 Likes

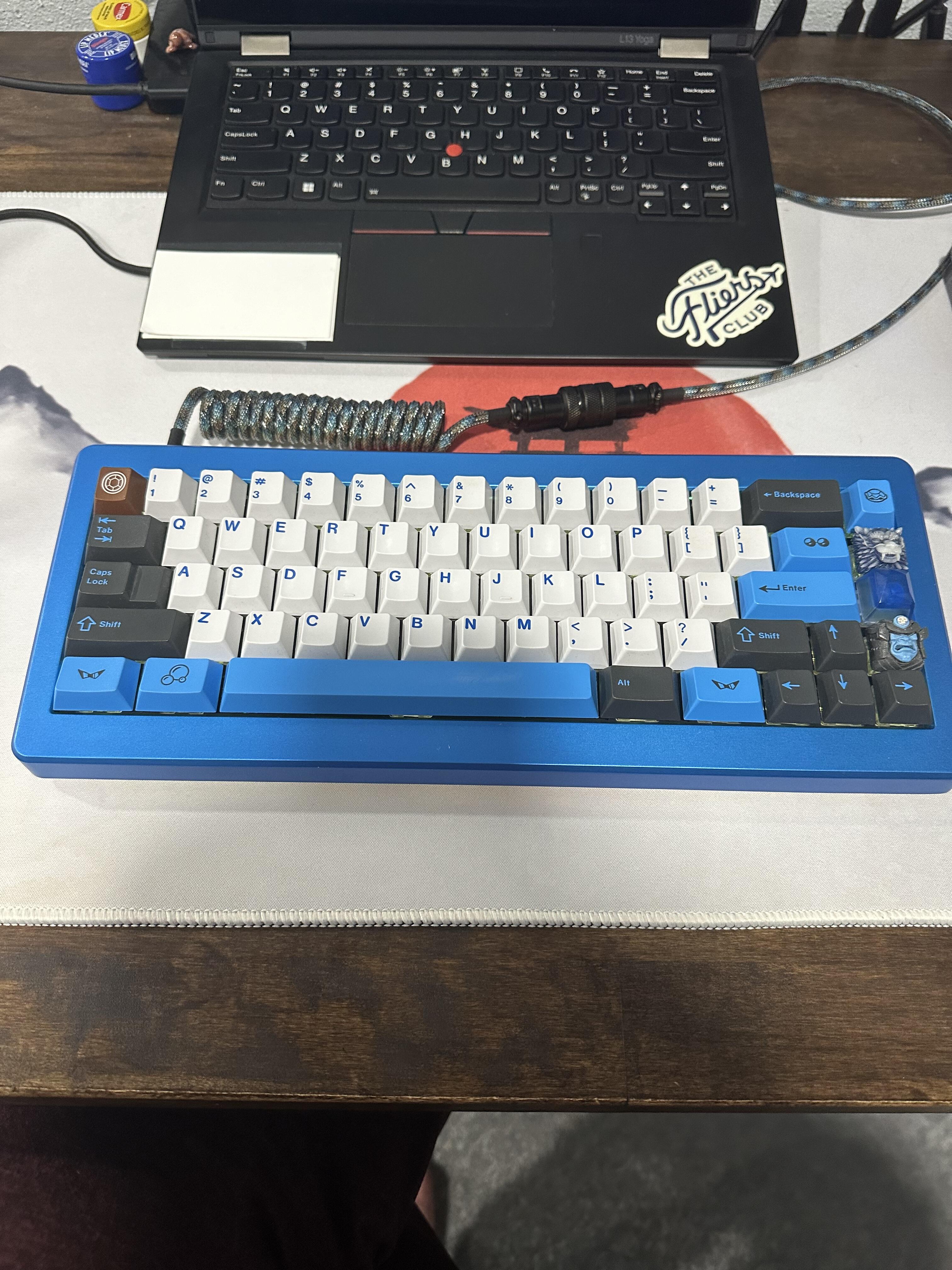

I’m not a photographer so sorry for the potato quality. Somehow still get bad pictures weird phones these days
1 Like
Happy you posted it, nice to see it work again!
Rico, thanks so much for your work on this - wondering if you still have one of the solder sets available? I could really use it to revive my board!
Hey !
Yes I have 2 PCBs (one of them may find an owner soon).
And also have plenty of half plates.
PM me if you want to discuss more in detail;)
1 Like
Hey again! Happy to see things are moving along!
If you have any of those ISO compatible boards left I’d love to chat about it. I have no idea how to send PMs on this site though
Hello!
Unfortunately, the last 2 PCB are about to find an owner.
But it looks like a few people like you are still interested in having one, if enough people are willing to get one I may purchase a small batch for you all.
1 Like
Hello! I would like to express interest in purchasing a PCB as well!
1 Like
I should maybe do a poll or a mini IC to gauge such interest ?
Tell me what you think!
Not sure. I have the V1 soldered in the V1 plate but I’d really like to solder into the newest 1/2 plate. So I would be down for 1 solder and 1 1/2 plate
1 Like
Ok!
Ideally I’d prefer to order like 10 solder PCB and 10 full plate. This would allow me to propose a reasonable price for everyone and not sell at a loss.
Dunno if 10 people would be interested though…
This PCB will also work for the original Noxary 268 keyboard, which has the same layout options and USB-mini port. The LZ cls MS also has the same PCB, but I think that one might have room for a usb-c port. Still, it would work in that board. I own both of them. I hadn’t even thought about the Noxary board. Hotswap on that one might be really nice. I’ll have to check bottom clearance.
