KV1-65%
65% Layout QMK/VIA Support Screwless Mechanical Keyboard
Index
- Intro
- Design
- Features
- Color options
- Specifications
- Inside the box
- Reviews
- Vendors
1. Intro
Hello everyone!
Exciting news! The brand new 65% group-buy keyboard has arrived! The KV1-65% supports both ANSI / ISO layouts and is compatible with QMK/VIA firmware, allowing you to customize every key to suit your needs. Even more surprisingly, it features a screwless structure, making maintenance and personalized upgrades a breeze. And now, at an irresistible price—starting at just $149! Join the group buy now and experience the joy of typing like never before!
2. Design
KV1-65% is a minimalist 65% keyboard designed by GDK Lab, marking the studio’s first entry in the K series. GDK Lab opted for a subtractive design approach, resulting in an overall shape that is both simple and restrained, with fluid lines that convey a sense of vitality. After completing the standard structure, the team focused on refining the details and texture, and the 220-mesh aluminum case makes each touch of the keyboard truly impressive.

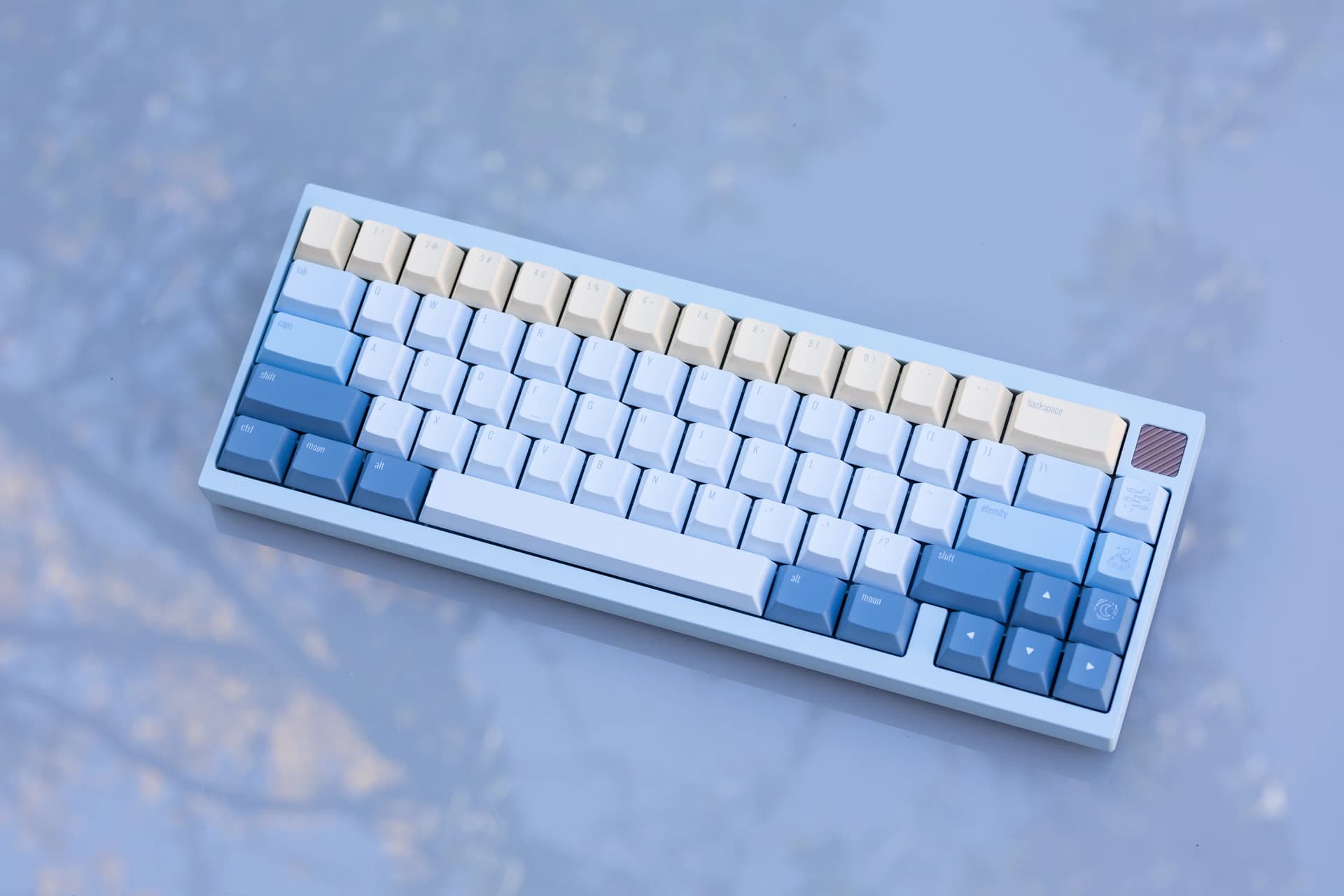

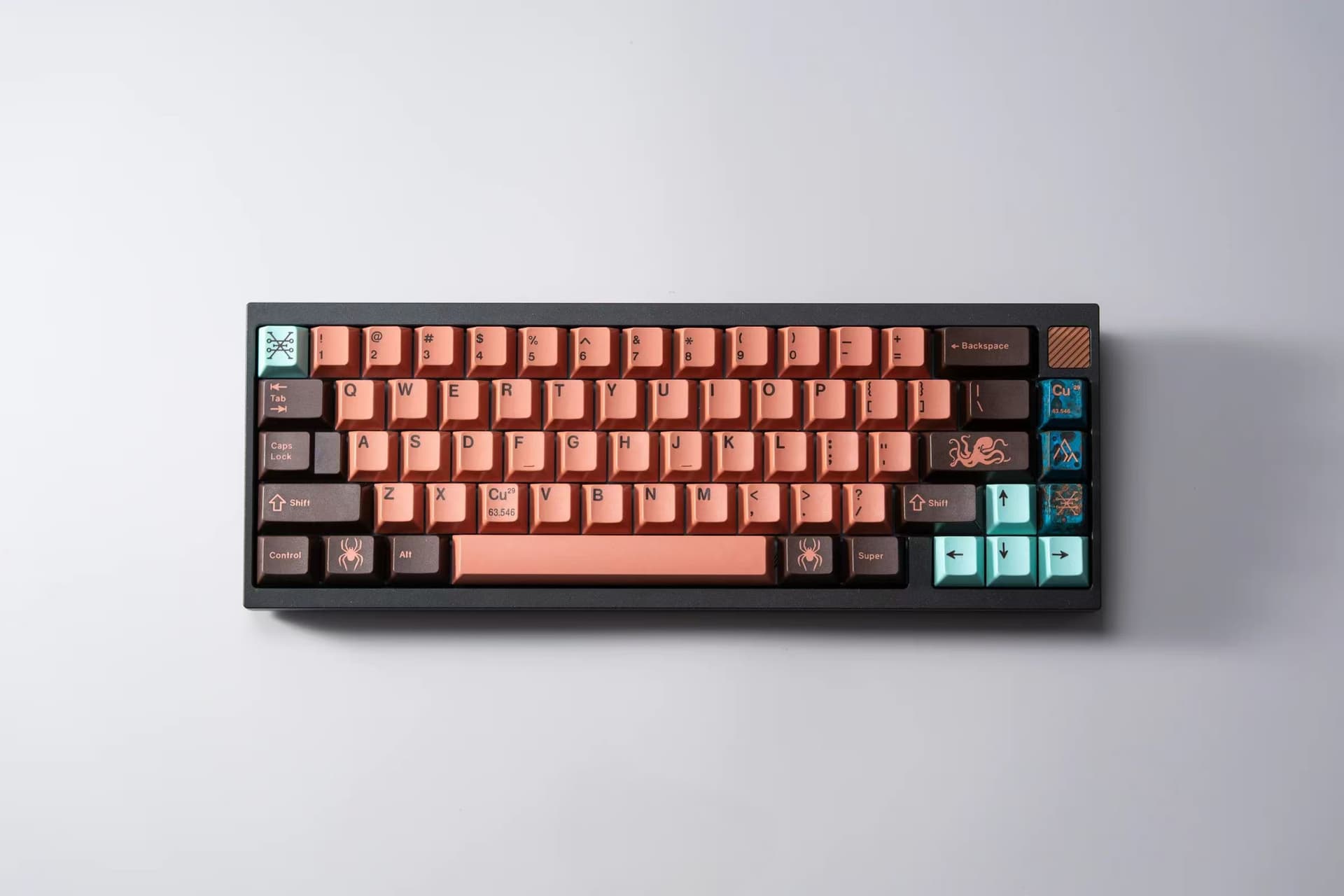

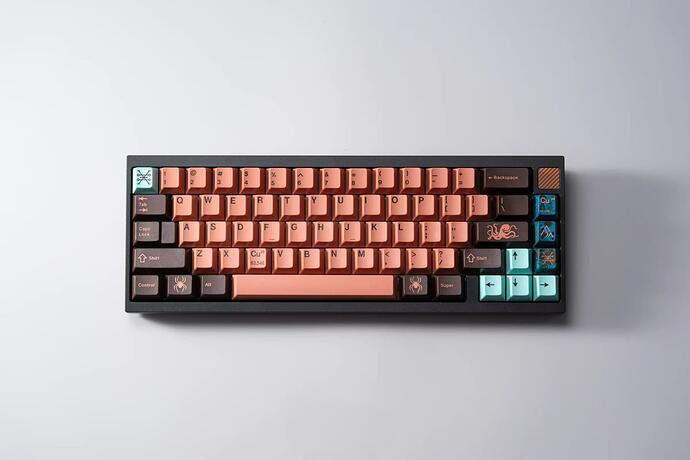

Front Design
The front has narrow borders on the left and right, and a badge is added on the upper right as a theme embellishment

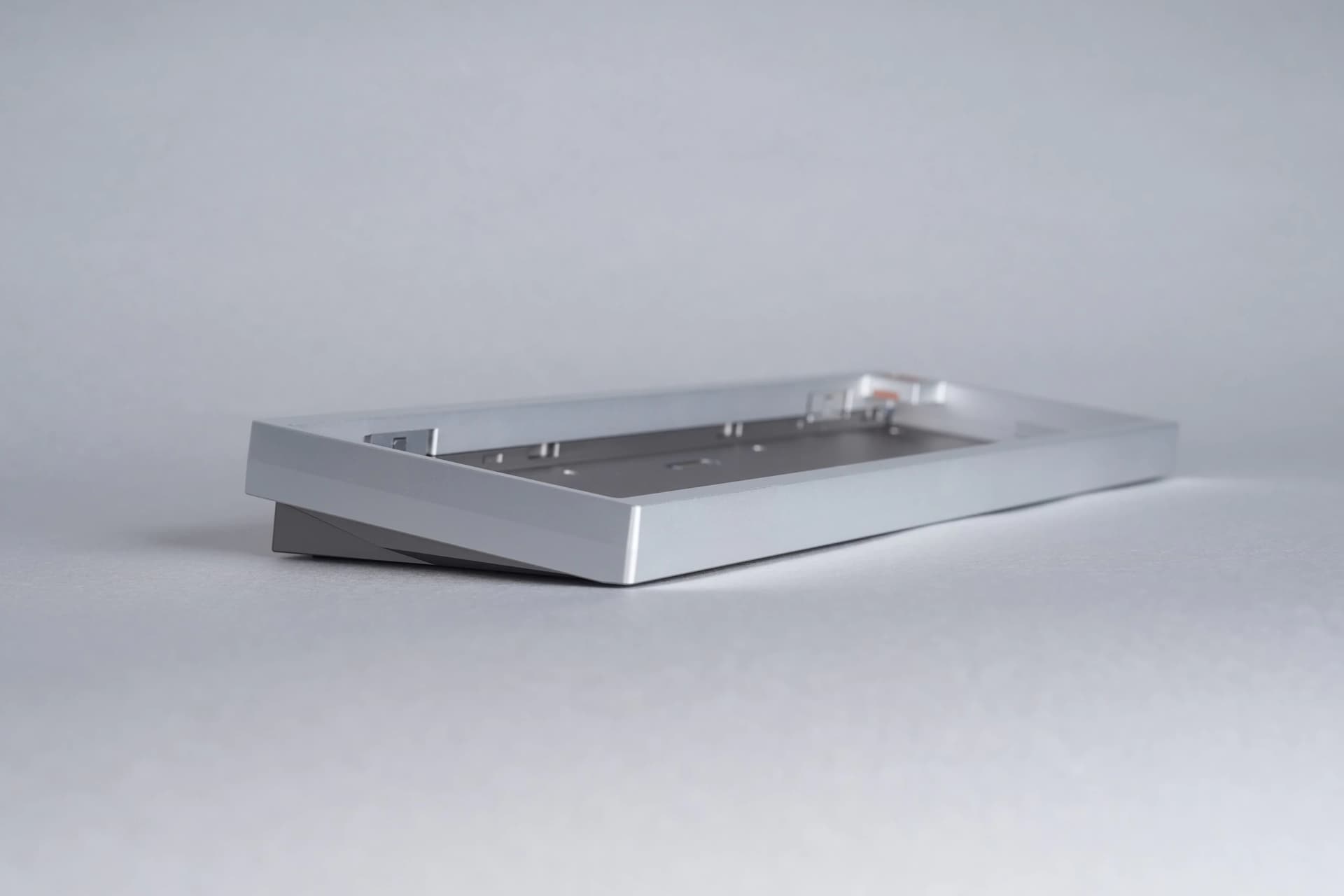

Side Design
The upper cover is designed with a cut waistline, and the steps of the bottom shell are cut through fold lines to make the entire side more layered.

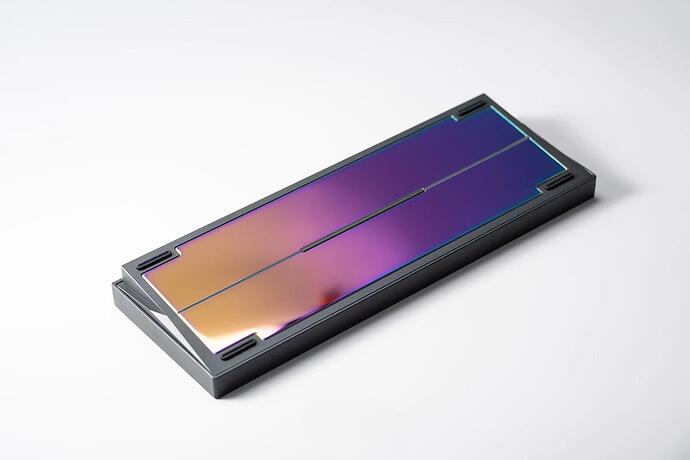

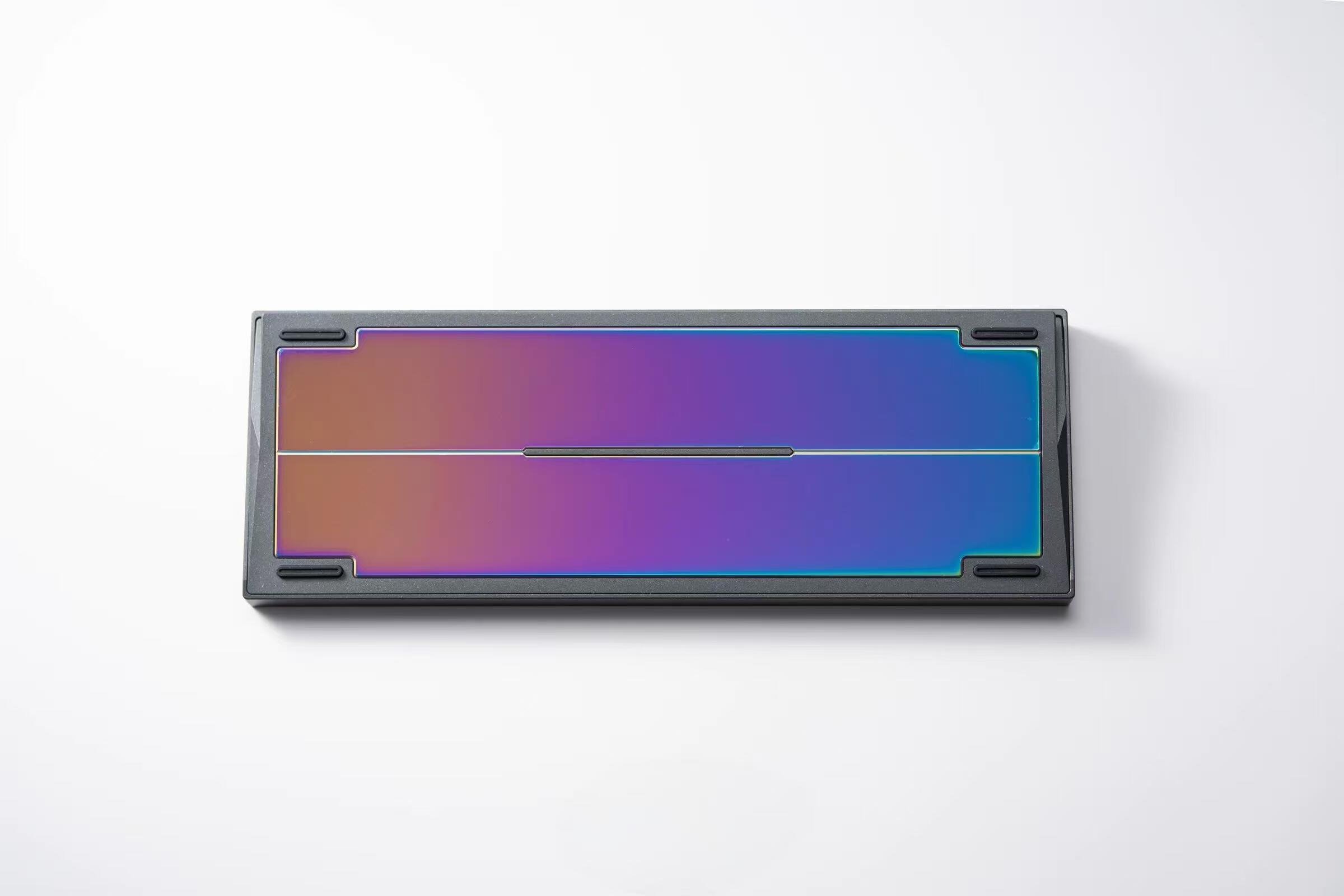

Back Design
The back is the highlight of Kv1-65%. A whole piece of weight is embedded in the bottom case, and the C-angle straight line in the middle echoes the stripe of the bottom case.
3. Features
Multiple Color Options
With an impressive selection that features as many as 12 color options available, you can be confident that you will discover at least one that perfectly suits your personal taste and preferences.

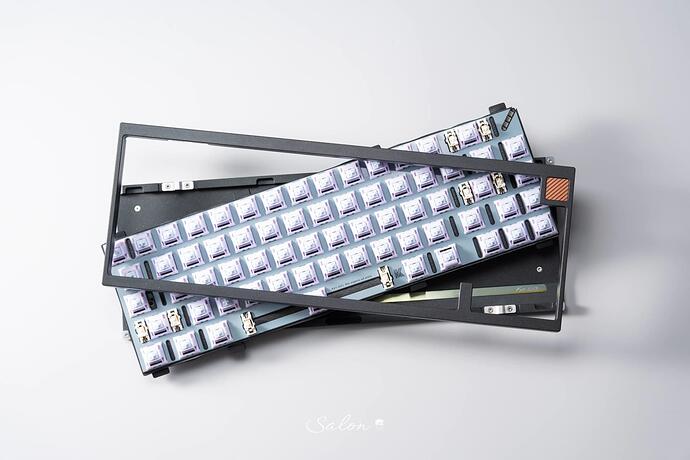

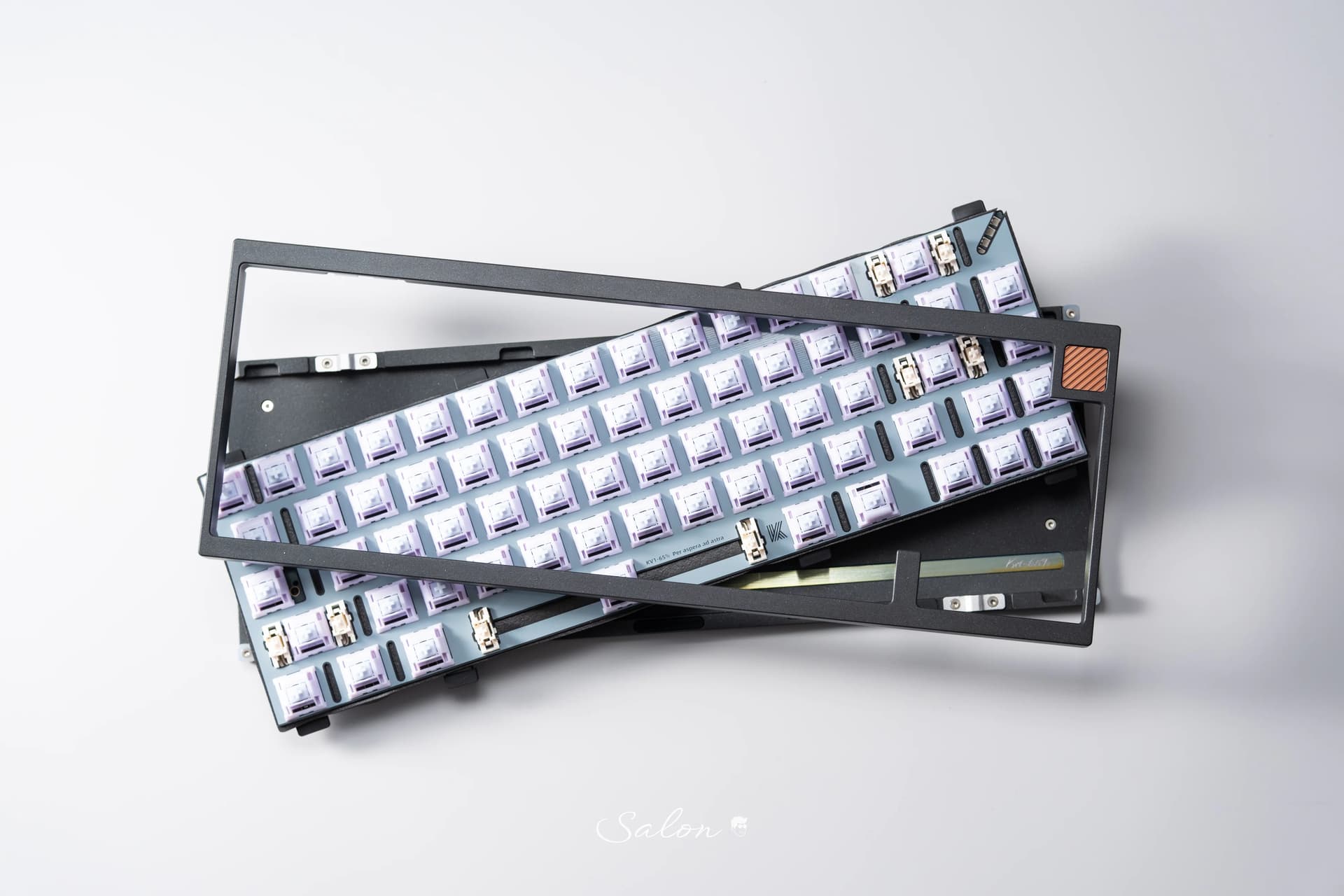

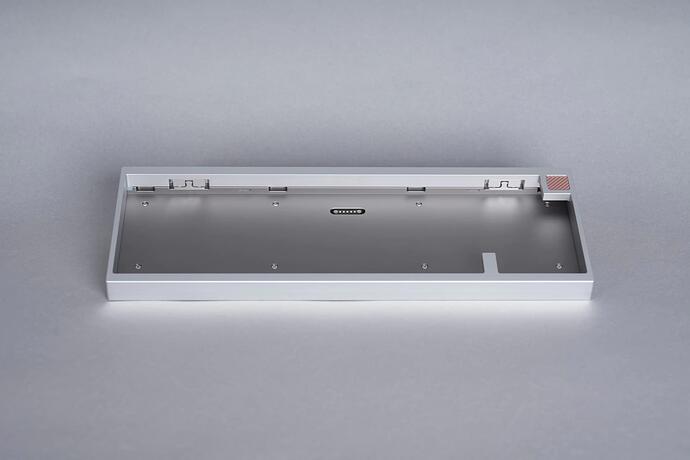

Ball-catch Structure
Make installation and debugging more convenient. And it was designed to have a crisper sound and clearer disassembly and assembly feedback.
Gasket Mount
The KV1-65% features a gasket design that utilizes custom silicone rubber bridges for support and a soft, cushioned feel.
VIA & QMK Support
VIA is a tool that enables keyboard configuration. With the VIA configurator, you can map keys to the physical layout of your keyboard.
Long-Lasting Battery Life
The KV1-65% offers 2 2500mAh battery, delivering up to 2 weeks of usage. Long battery life ensures uninterrupted work and entertainment, allowing you to stay productive and stay connected wirelessly for longer, without the need for frequent charging. What’s more, it allows you to charge and use at the same time in wired mode.

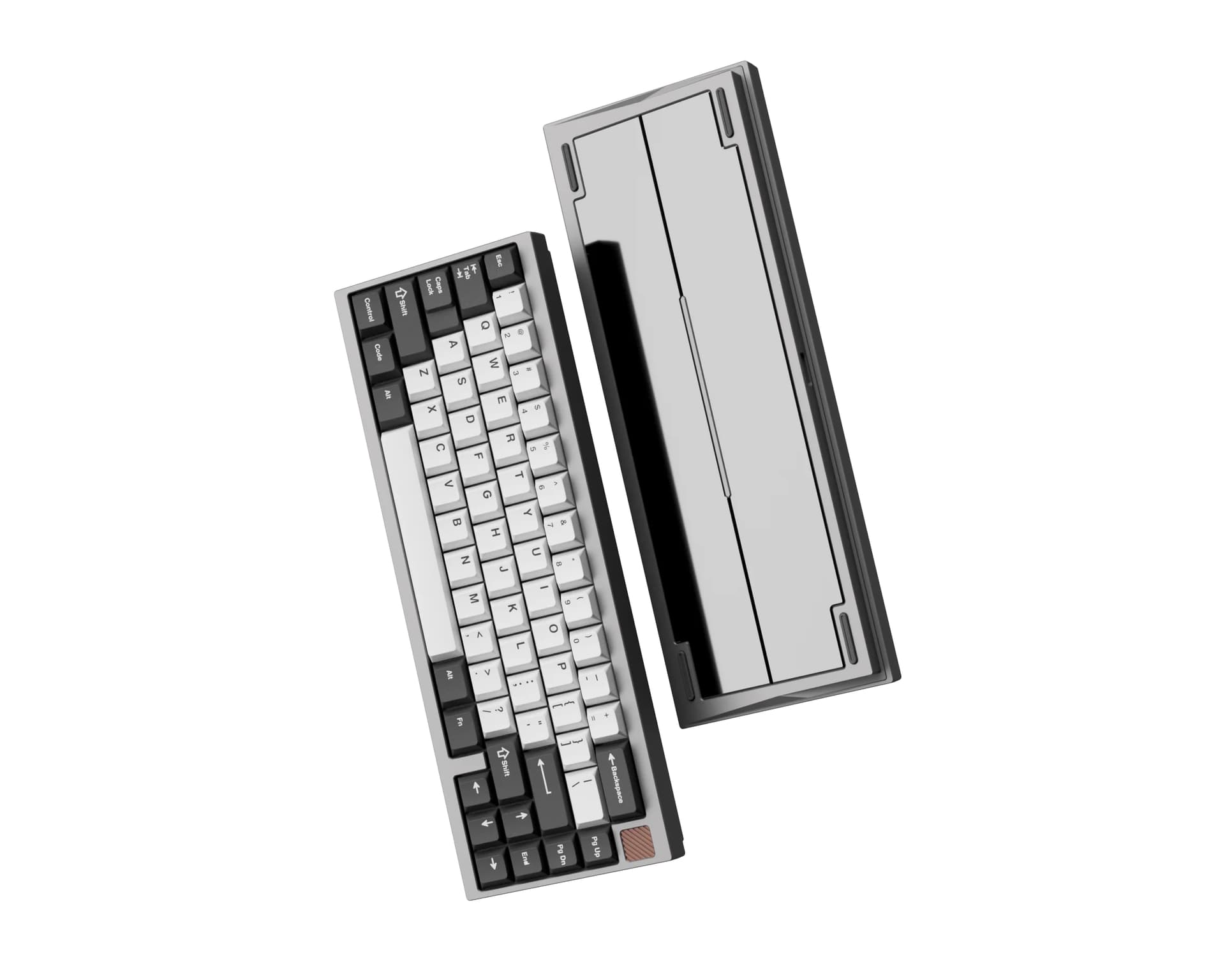

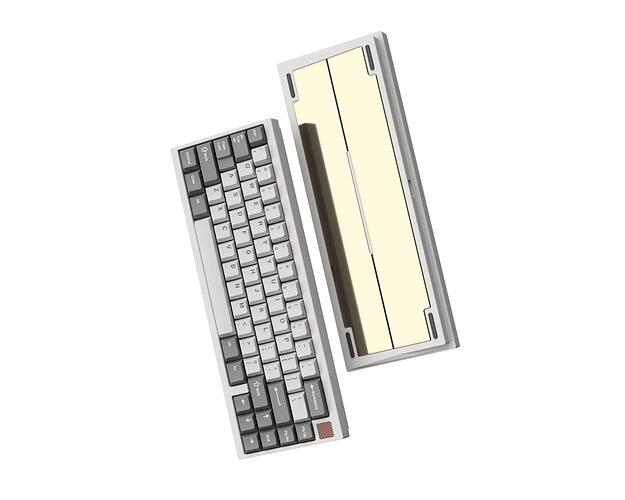

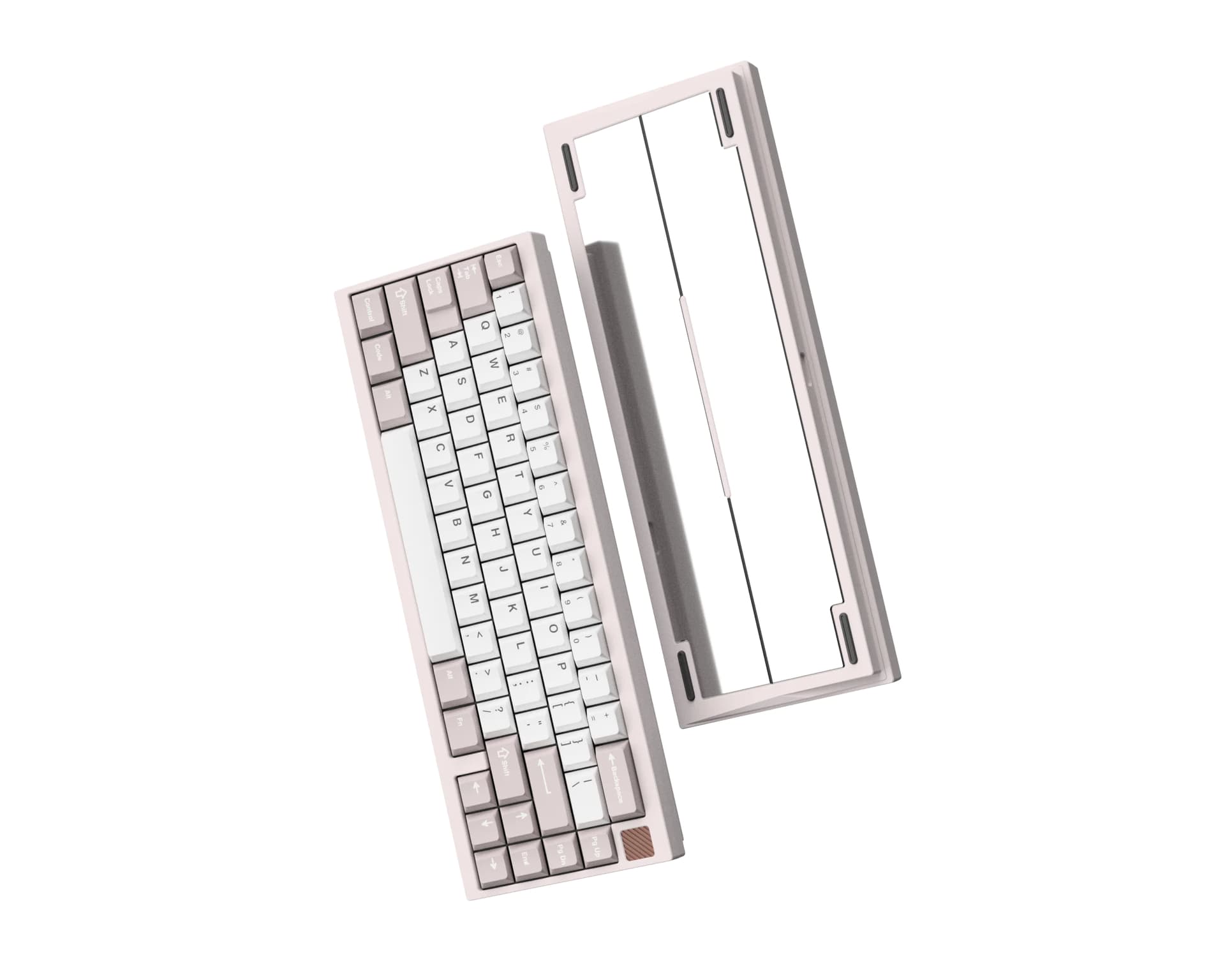

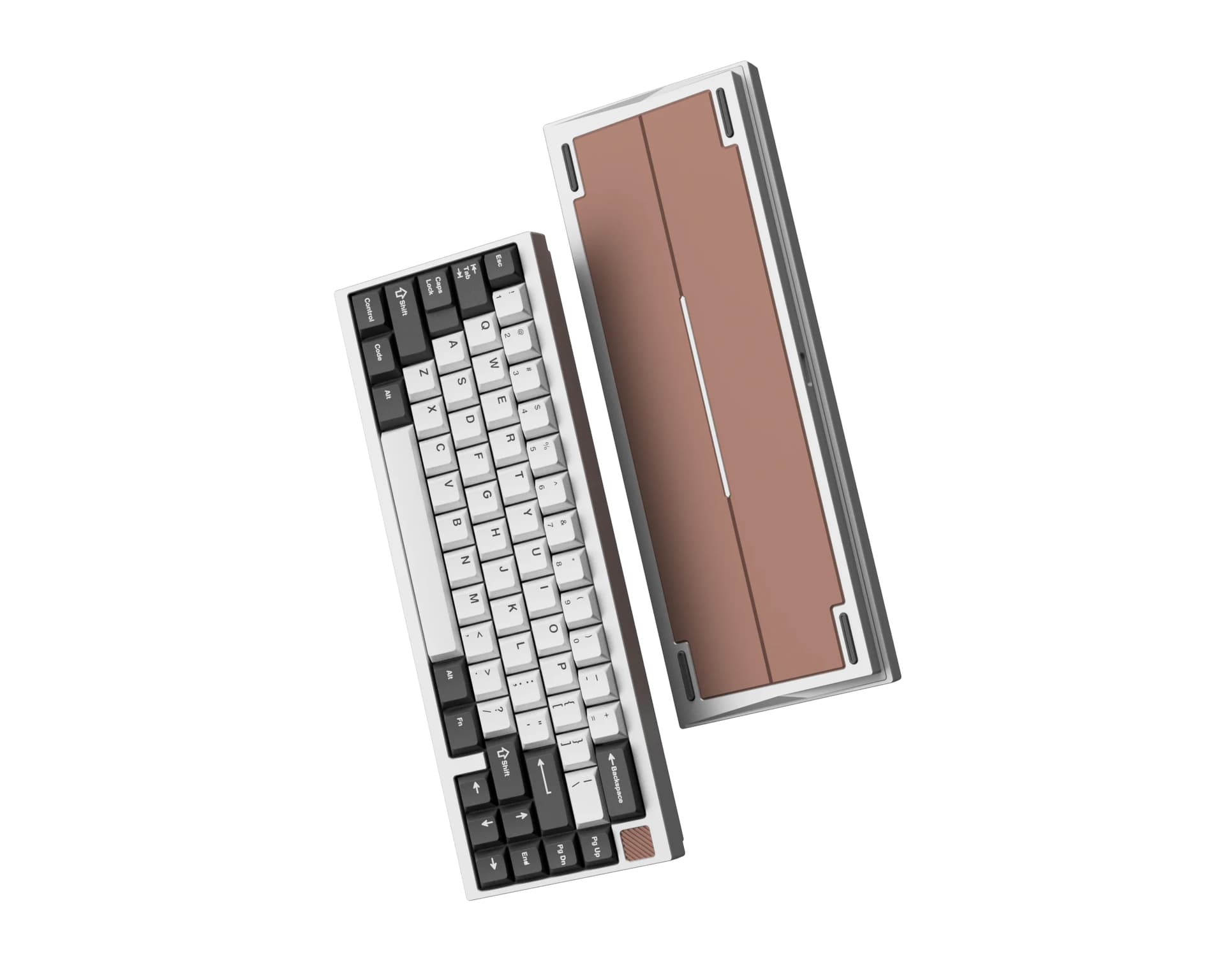

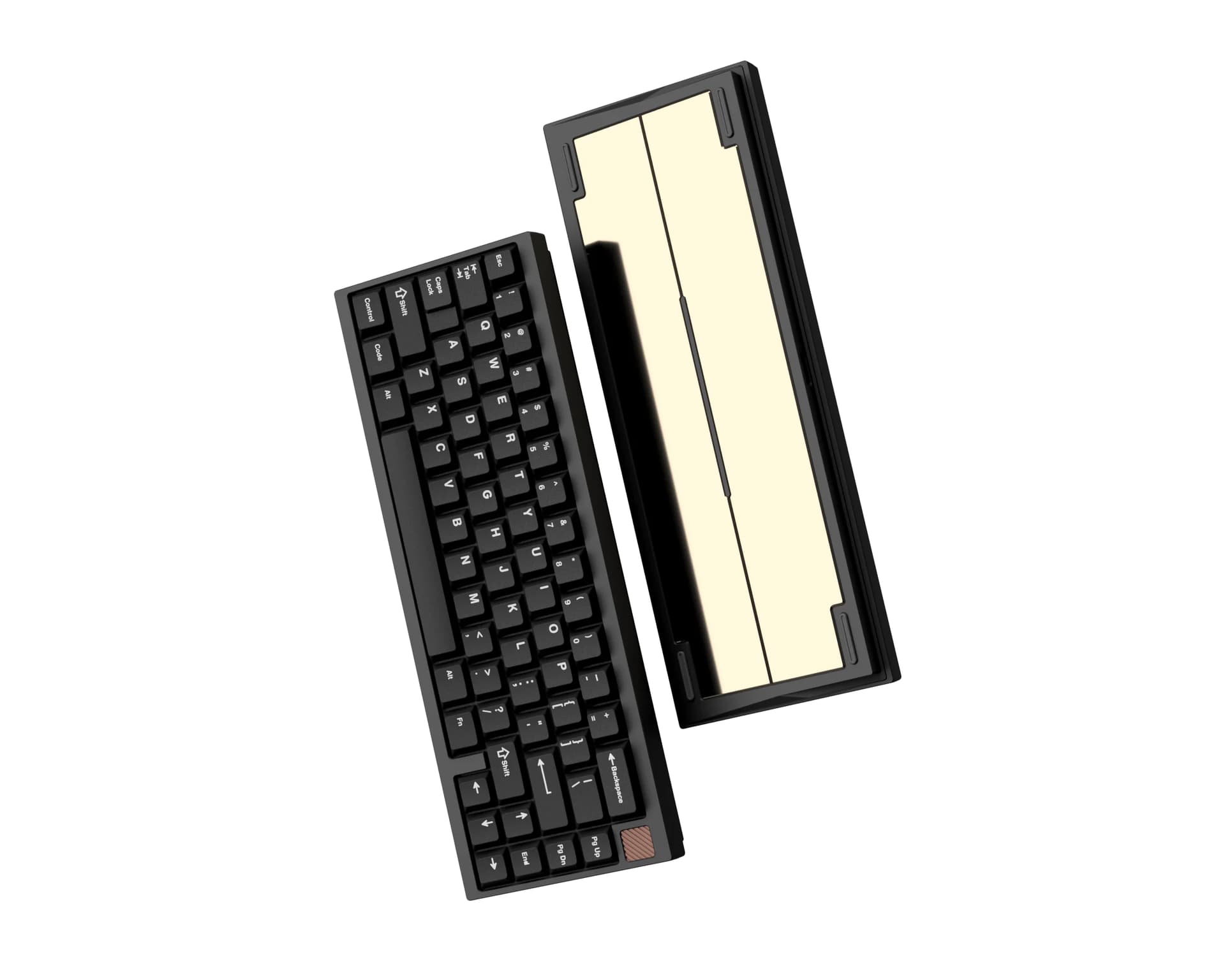

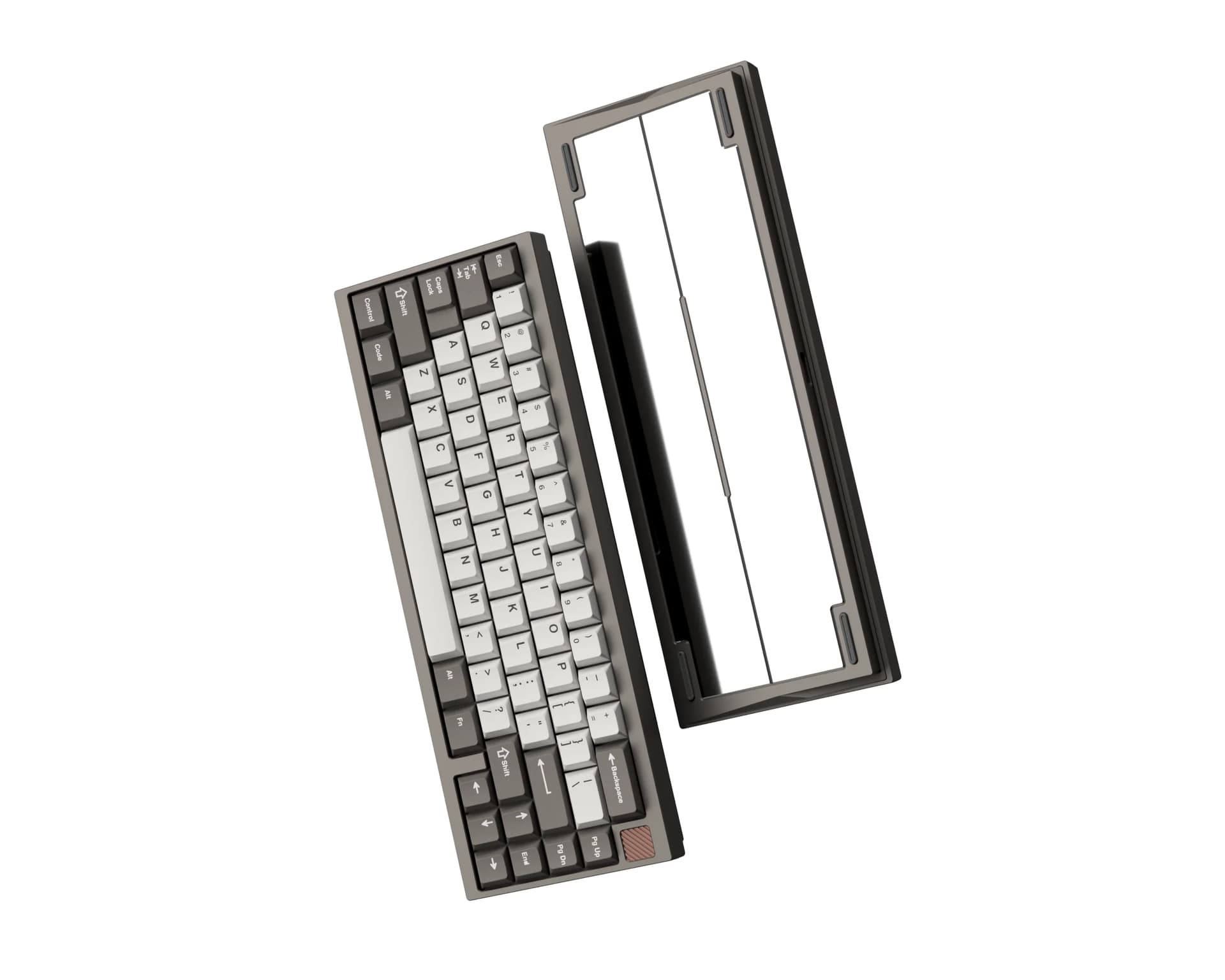

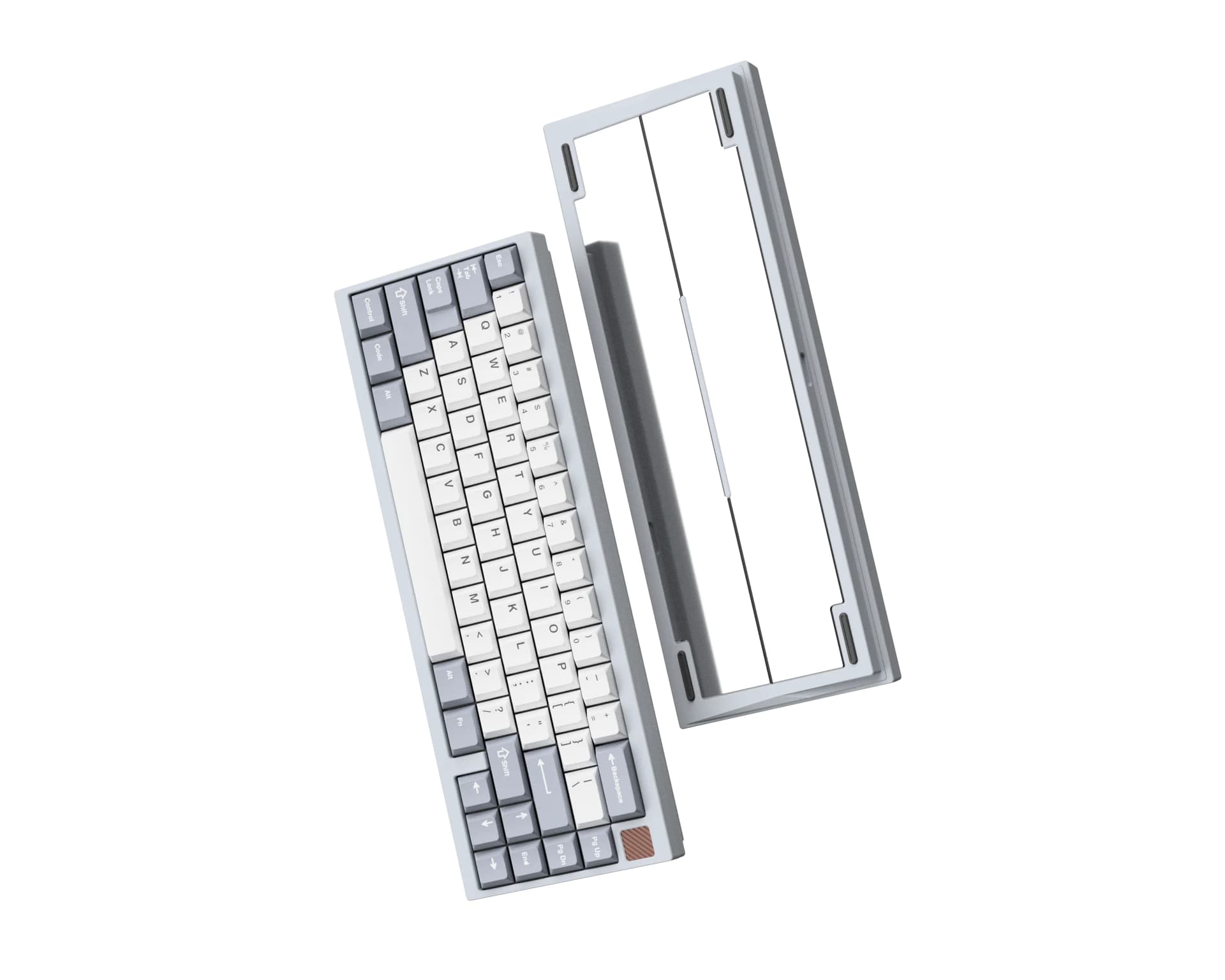

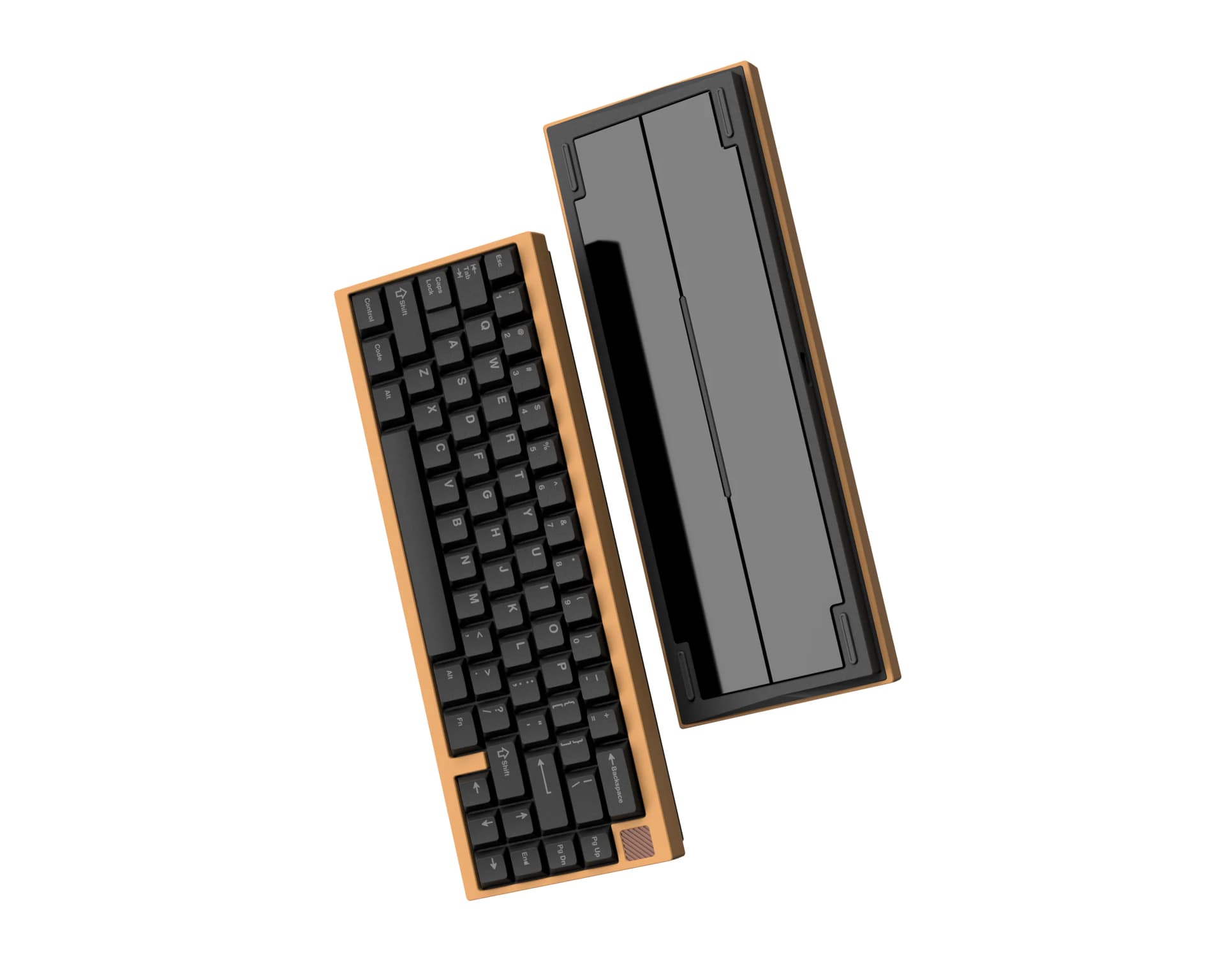

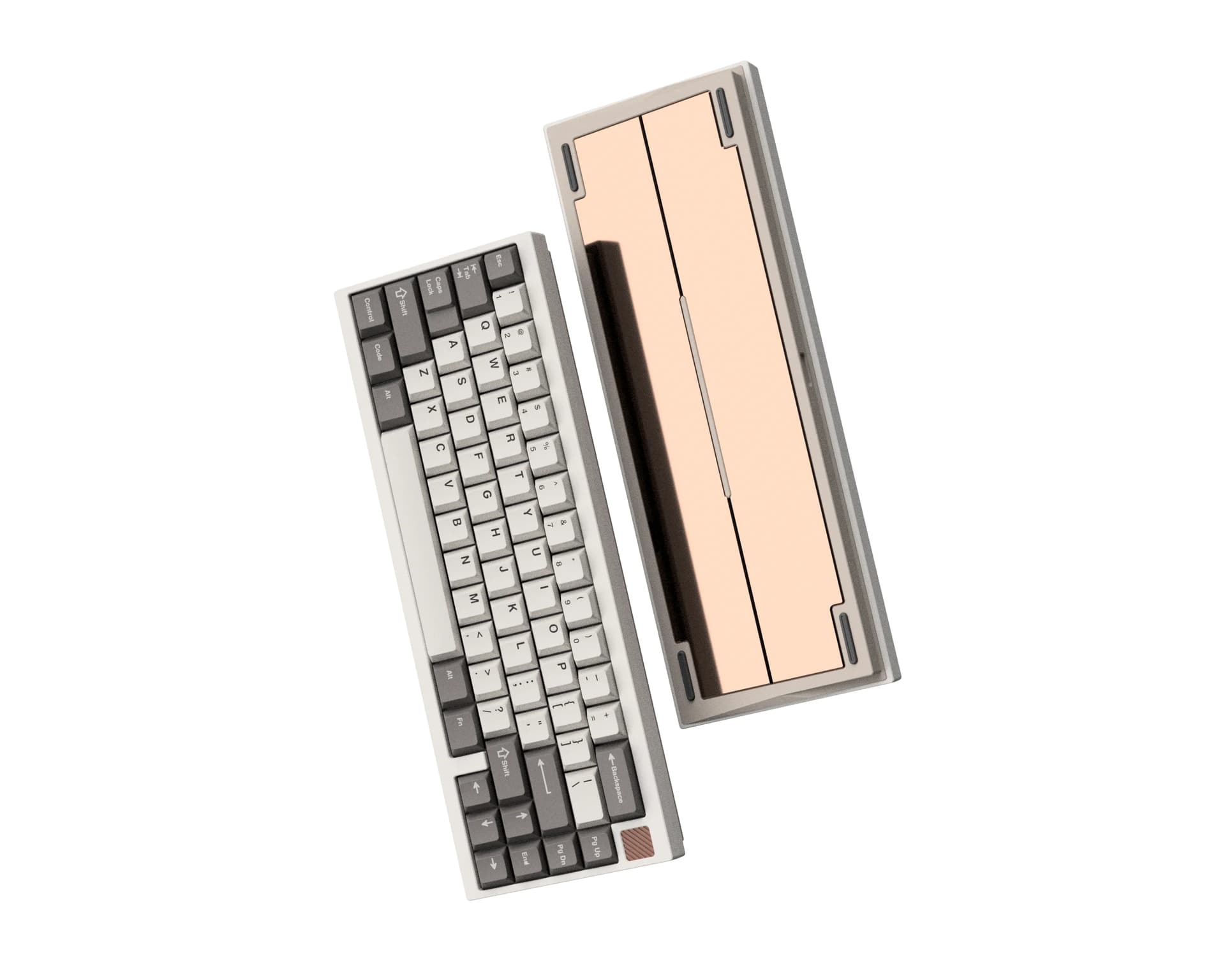

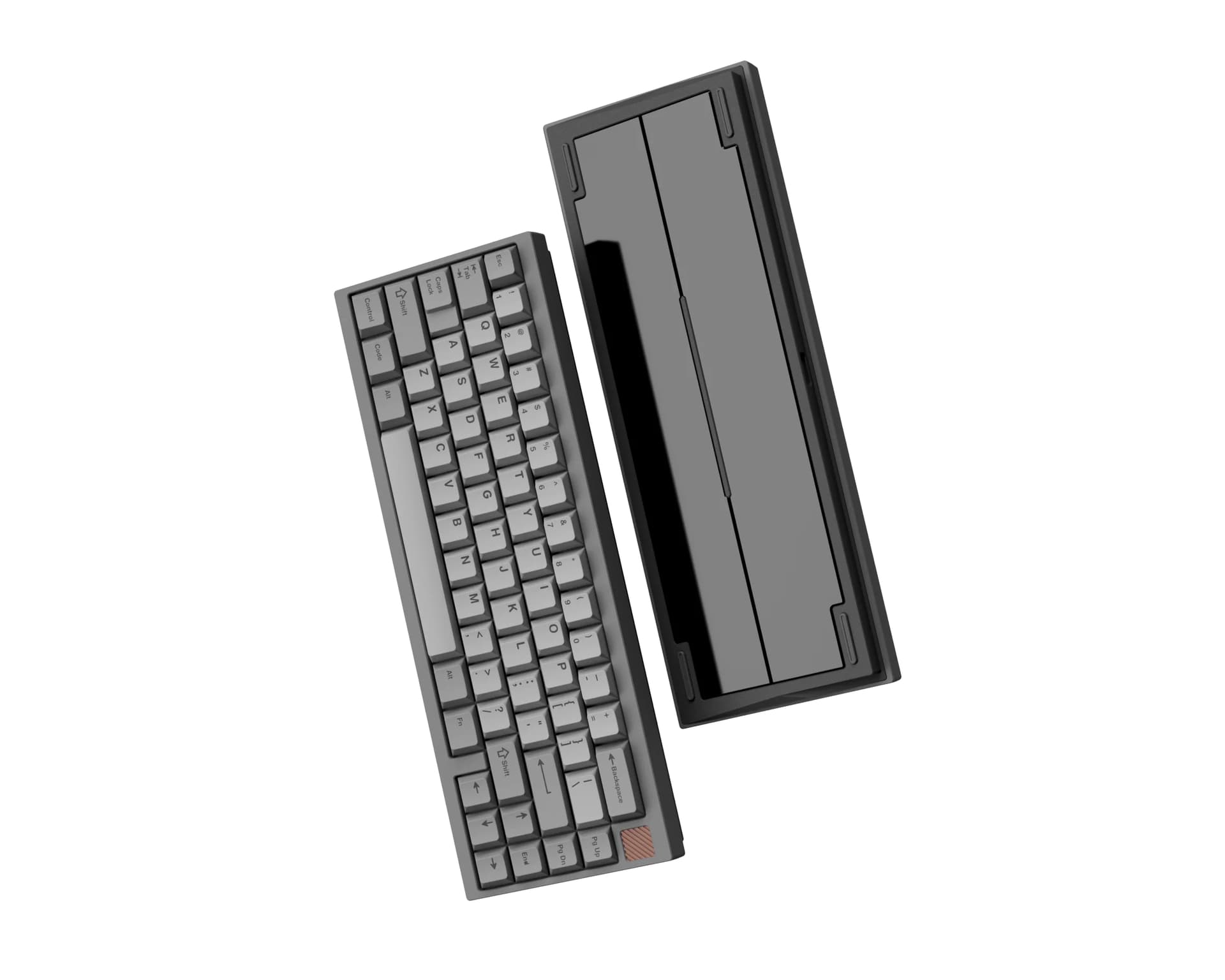

4. Color Options
5. Specifications
- Mount: Gasket mount
- Connectivity: Single mode / Tri-mode
- Material: 6063 CNC Aluminum (220 mesh)
- Surfacing: Anodized, Spray paint
- Acoustic: Poron pad x1/Bottom pad x1(Customers can try not adding any padsand still get a good typing sound)
- Weight: Stainless steel matte PVD / Mirror PVD / Red copper
- Case Weight: 1.4kg
- Weight with switches and keycaps: 1.76kg
- Size: 313×113mm
- Typing Angle: 8°
- Compatible System: Support Windows & Mac
- Battery: 5000mAh (2500mAh x2)
- Rolling rate: 1000Hz (Wired), 125Hz (Bluetooth, 2.4G)
- Front Height: 16.9mm
- Badge: Red copper
- Add on: PC, Alu plate without flexcuts
Plate
- FR4 material
- 1.6 mm thickness
- Without flex-cuts
- Supports ANSI or ISO layout, ANSI plate only supports 6.25u spacebar and ISO plate supports both 7u and 6.25u spacebar
- Support stepped caps lock
- Support 7U, 6.25U spacebar
- Compatible with PCB stabs

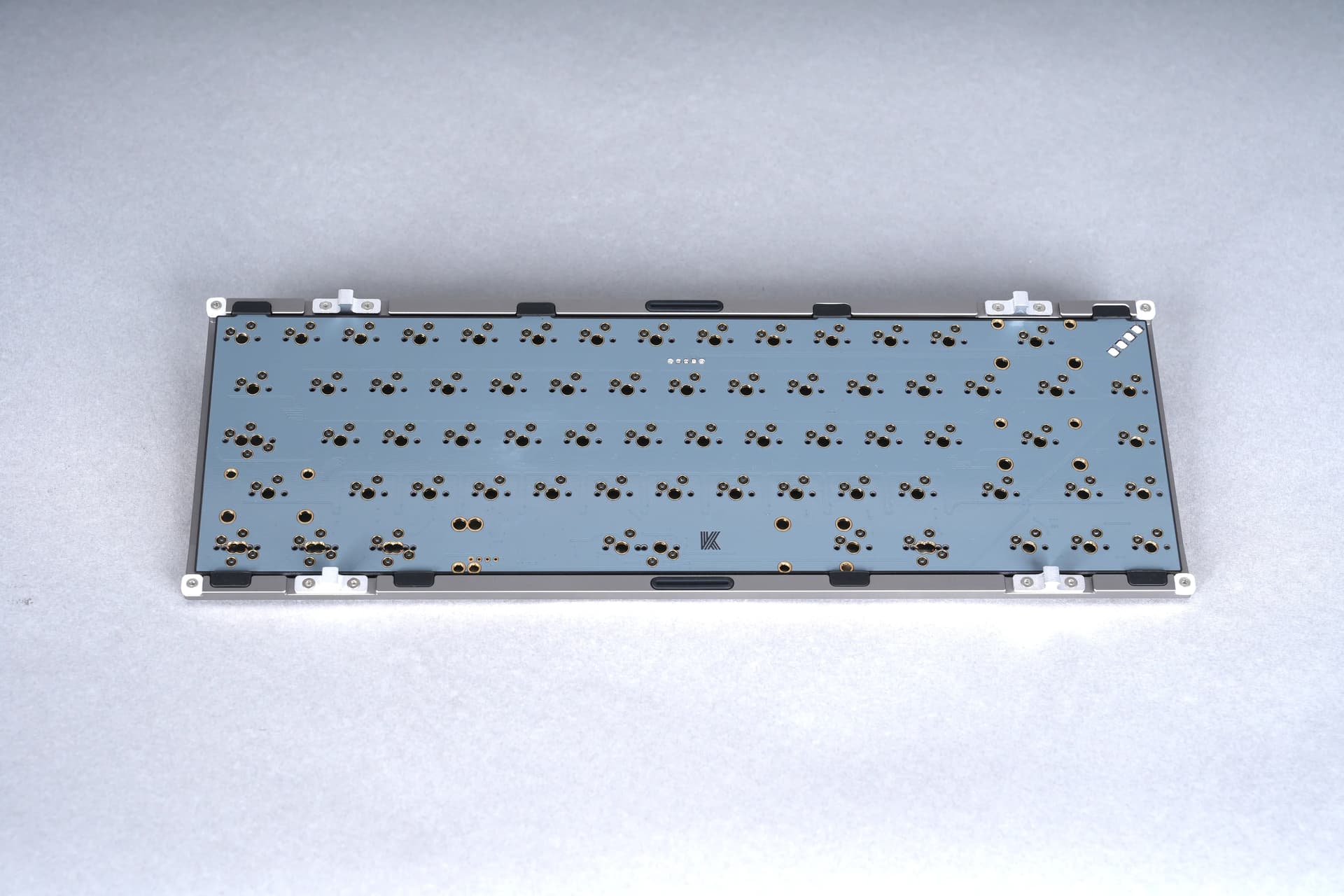

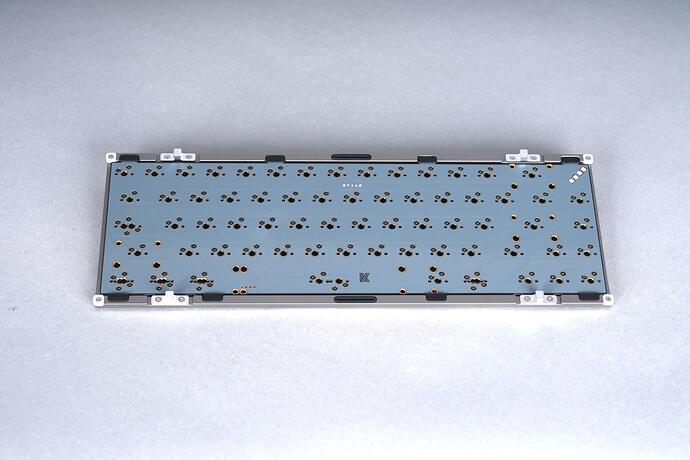

PCB
- Hotswappable
- 1.6 mm thickness
- Without Flex-cuts
- PCB mount stabs compatible with tri-mode PCB (single mode PCB only compatible with Plate mount stabs )
- Support ANSI/ISO Layout
- Support QMK/VIA
- Support stepped caps lock
- Support 7U, 6.25U spacebar
- No per-key RGB
6. Inside the box
- Aluminum top case * 1
- Aluminum bottom case * 1
- copper badge * 1
- FR4 Plate * 1
- Hot-swappable PCB * 1
- Type-C cable * 1
- Screw bag * 1
- Foot pad * 4
- Plate stabs
- Packaging box * 1
7. Reviews

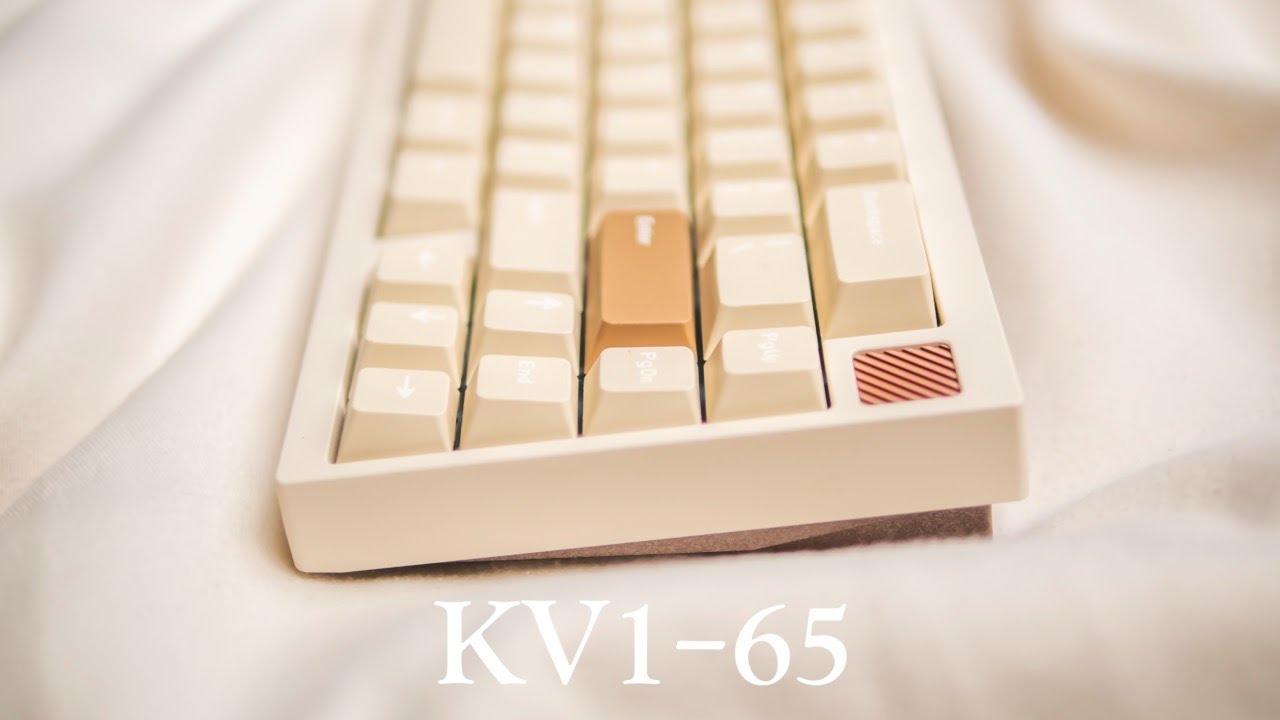

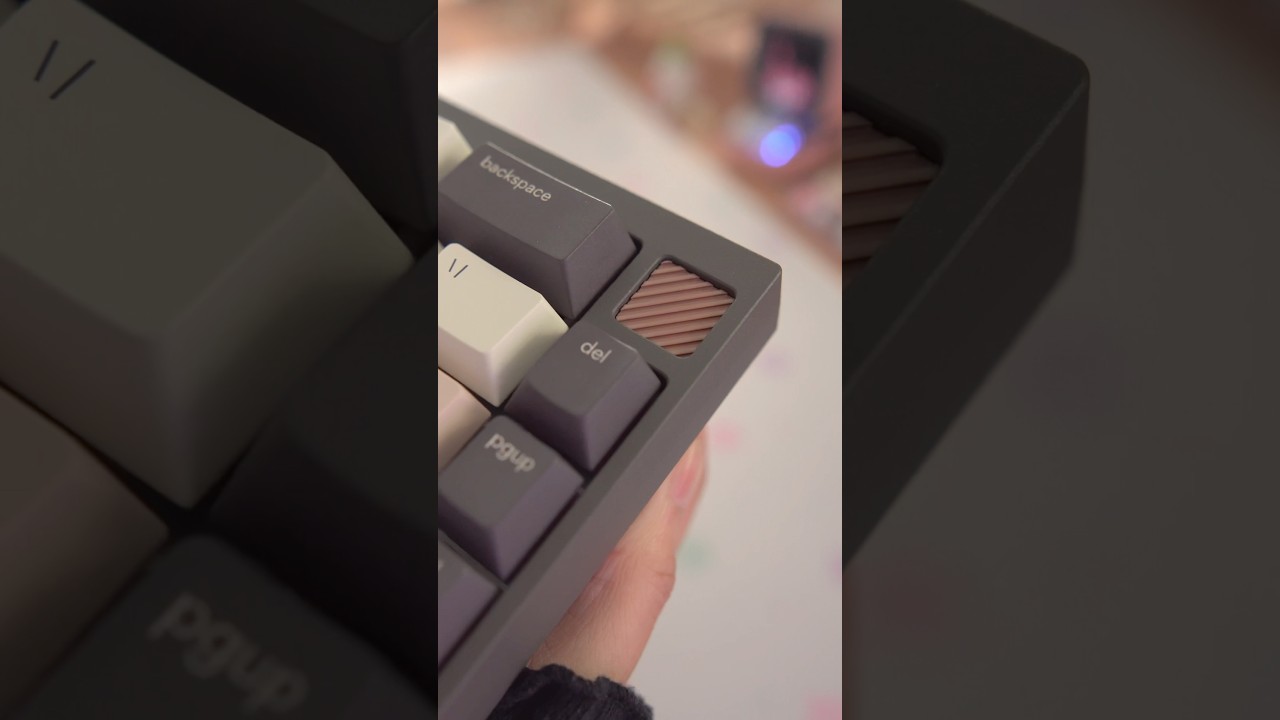

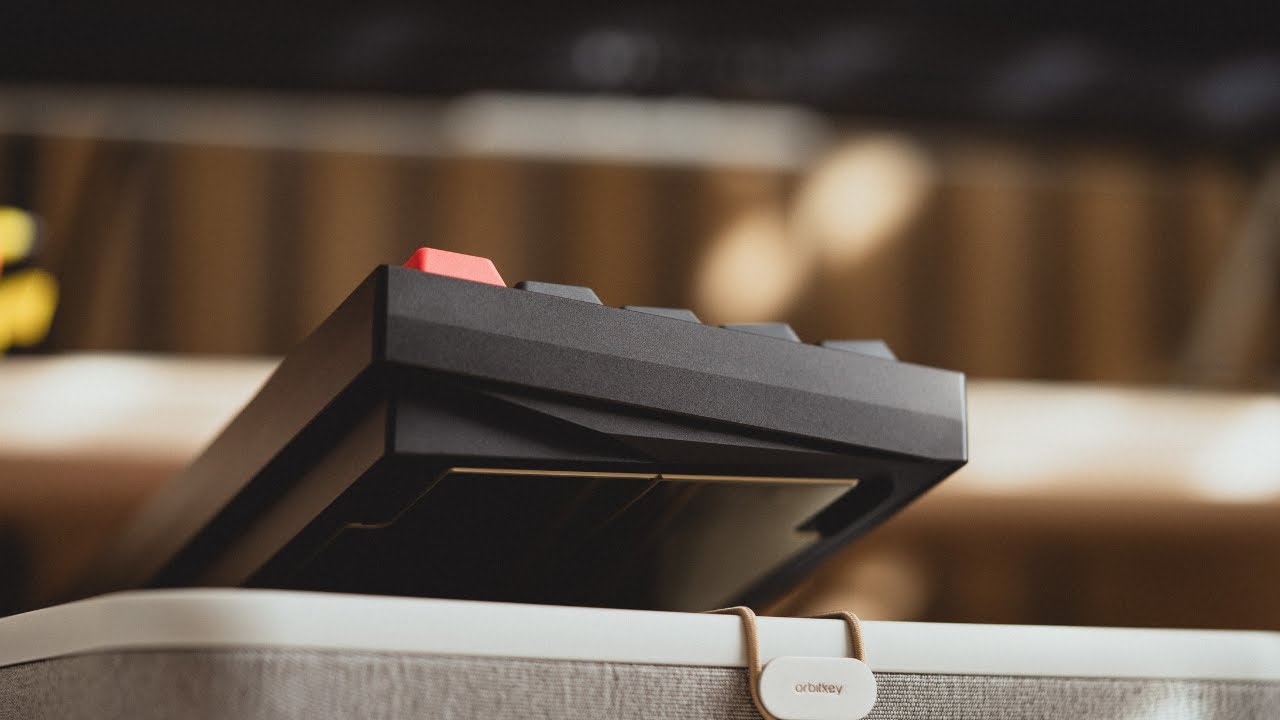

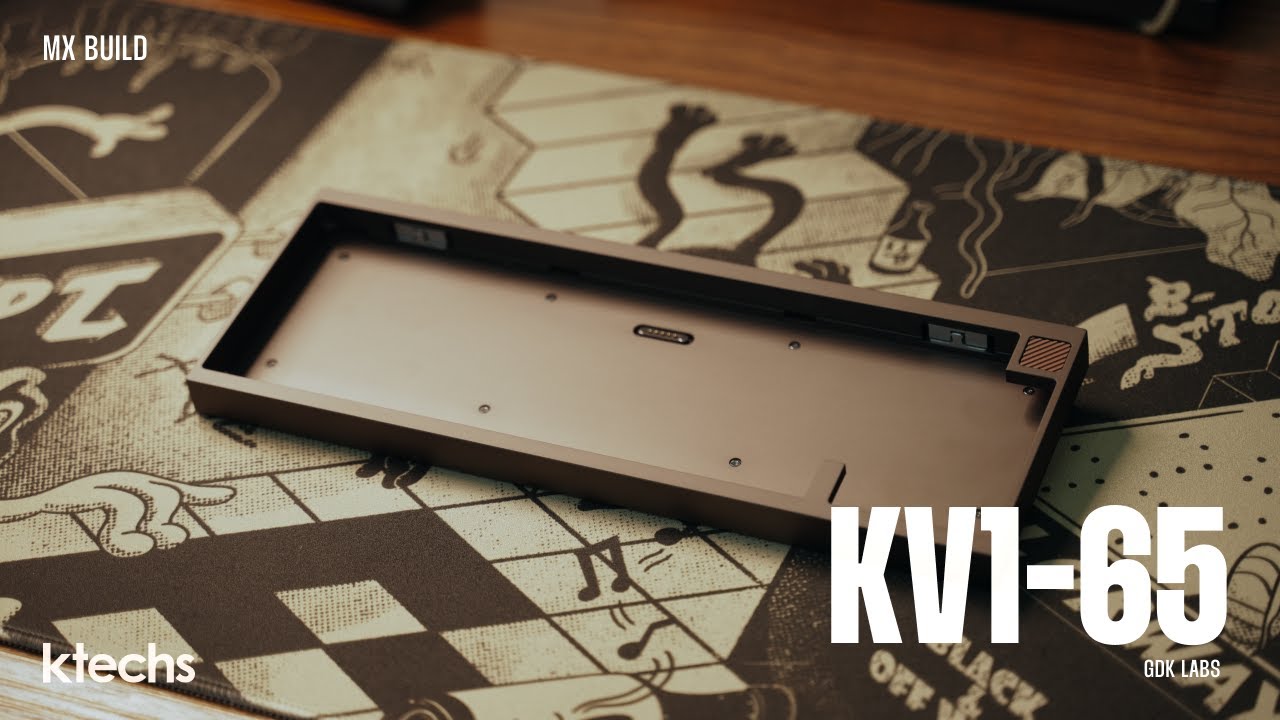

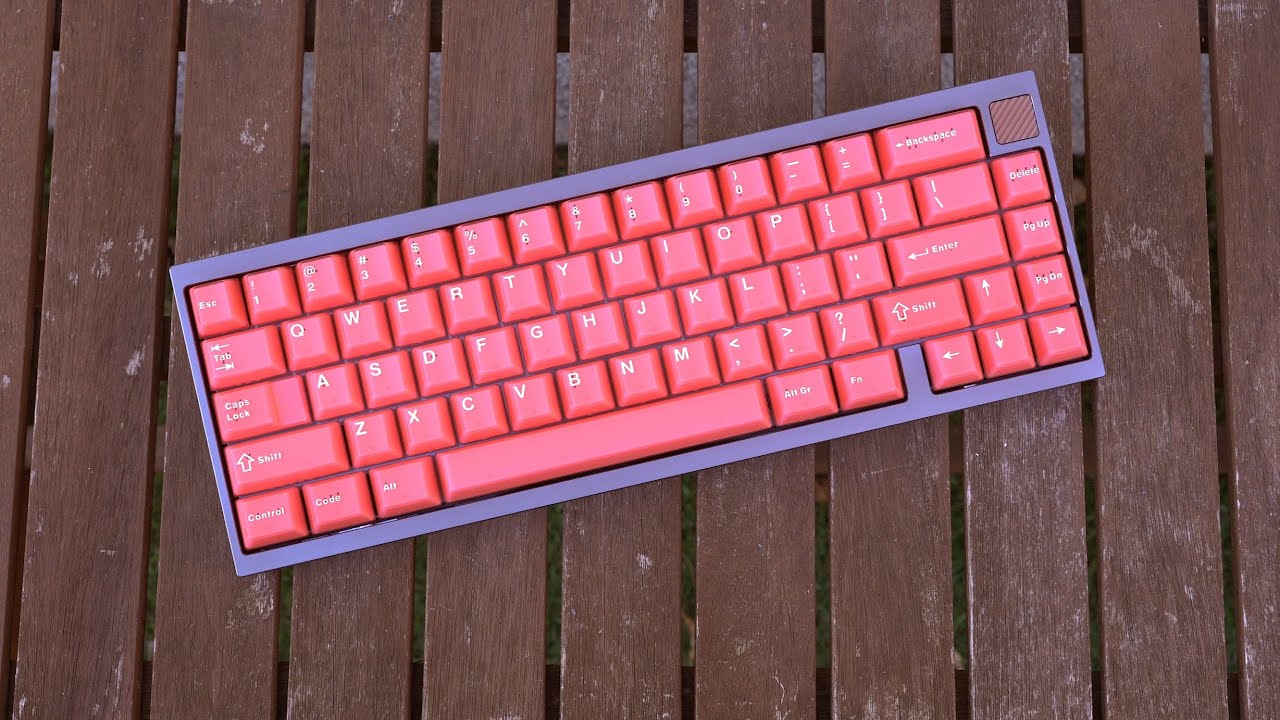

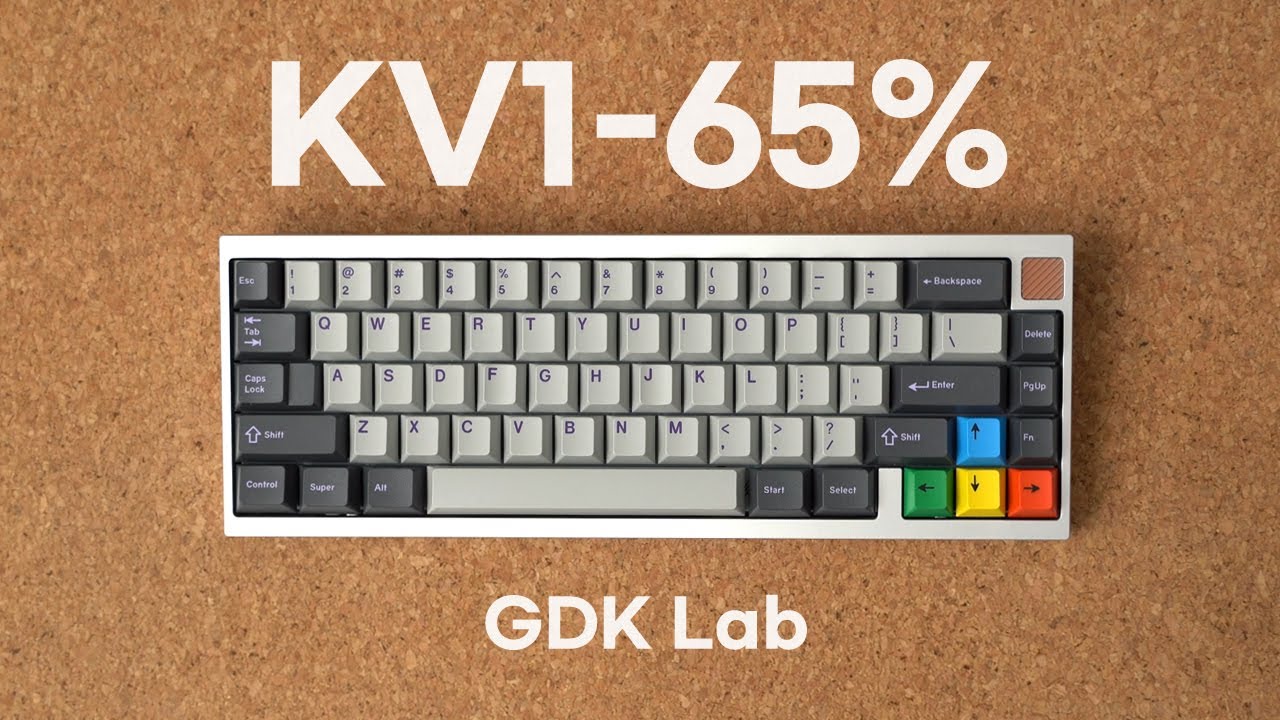

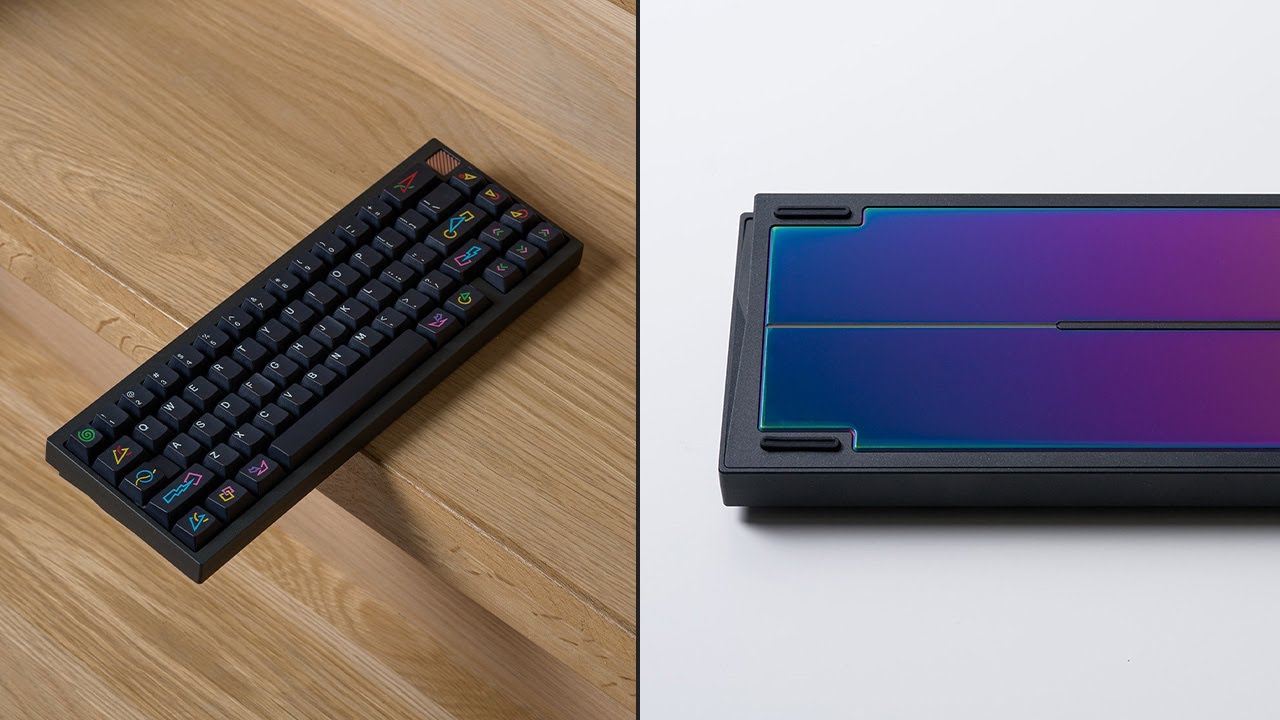

Please check more unboxing videos on our YouTube channel !
