The Leyden Jar, a tentative PCB replacement for the Brand New Model F Keyboards

Makerspace Making keyboards
28

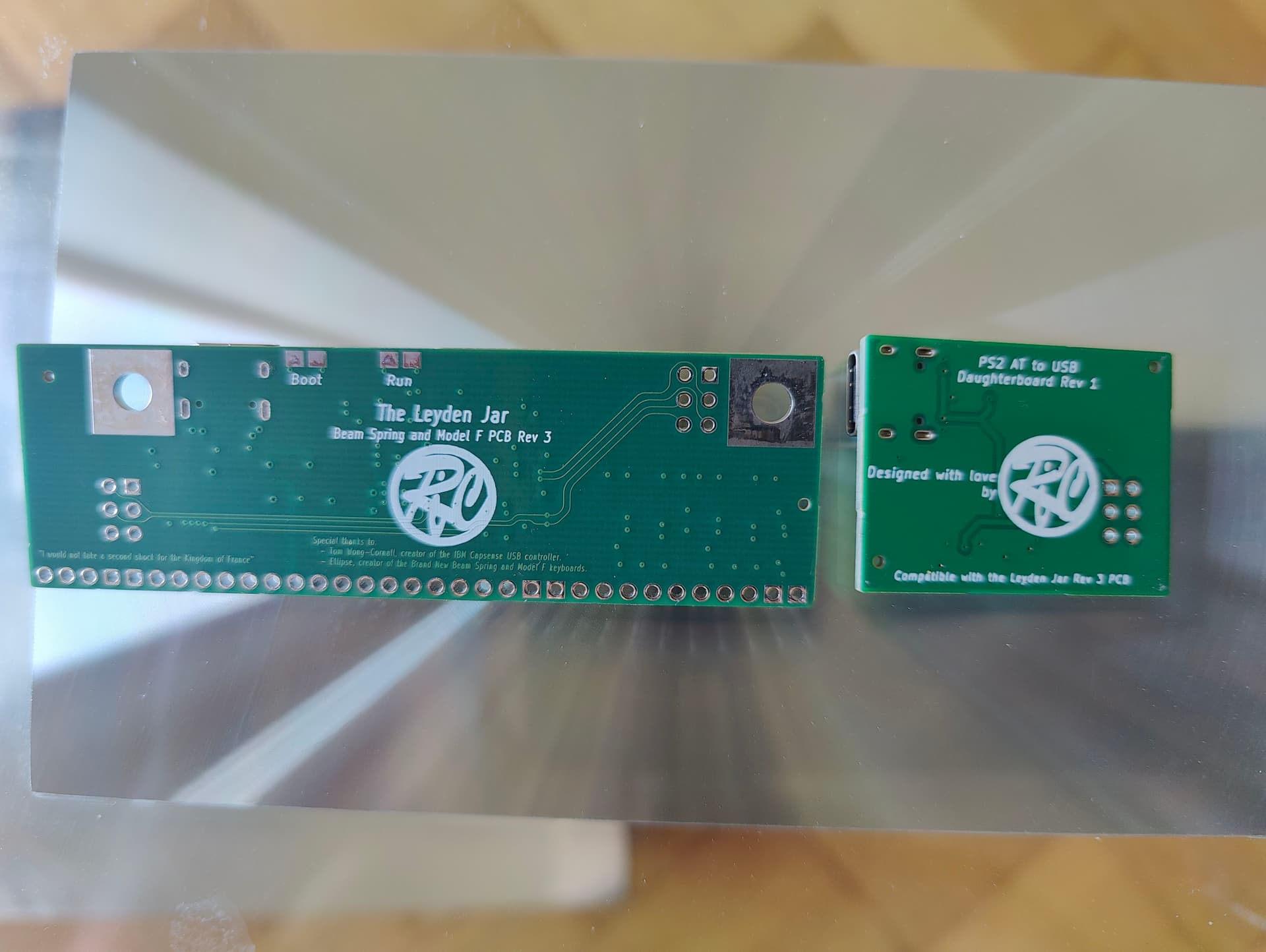

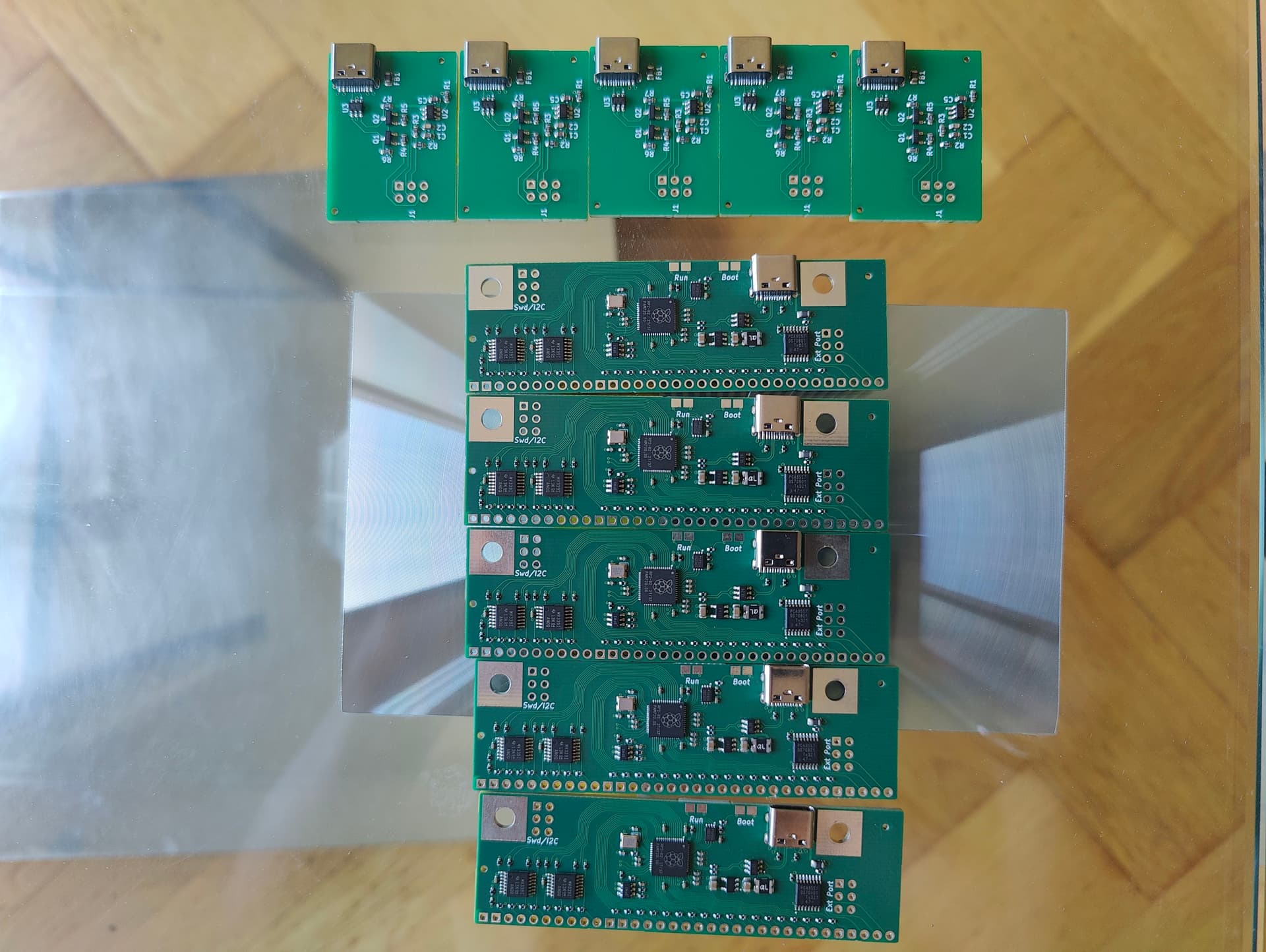

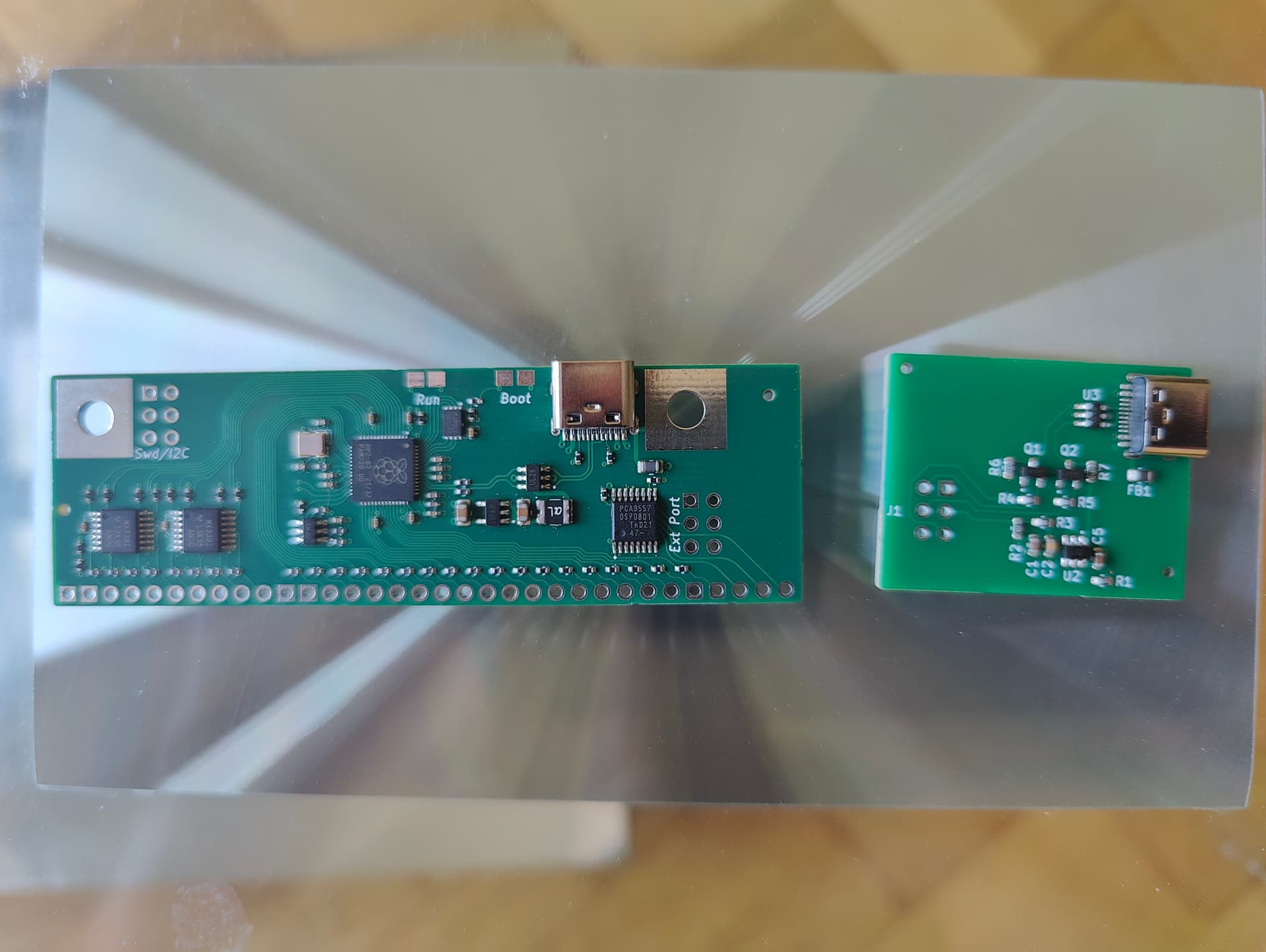

I just received the Rev3 Leyden Jar PCBs from JLCPCB, and also PS2 AT to USB daughterboards.

IMG202308241905351920×1444 237 KB

IMG202308241904221920×1444 124 KB

IMG202308241904371920×1444 116 KB

I’ll have to find time to solder this new controller to my F77 in order to check that everything works and tune the firmware code.

2 Likes
